Wall, Ceiling & Desktop Mounts
All Crimson AV products are designed to be functional, durable and easily installed. Only the highest quality steel and aluminum materials are used in our manufacturing process and all products undergo rigorous testing. Crimson AV specializes in professional grade mounting solutions that are designed to withstand the UL safety factor of at least four times the load rating. TB&A carries a full line of Crimson mounts for hospitals and healthcare facilities. Please click on the products below to order and for more information.

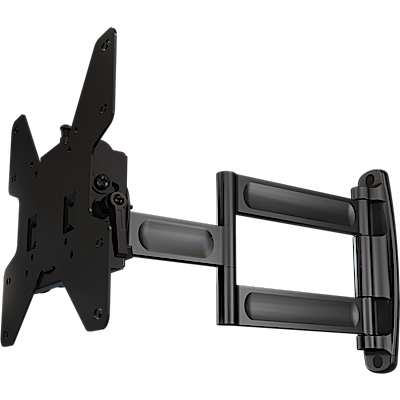

Crimson Articulating Wall Mount for 13″ to 40″ Screens
Model : A37F
Multiple joint arm holds screen 2.9″ from wall when retracted and 15.4″ when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) and 2.5° side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Integrated cable management for clean look.
Click here to download PDF spec sheet (260k)
Specifications
- VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
- Pre-assembled securing screw makes installation fast and easy
- Post installation screen leveling without use of tools
- Integrated cable management for clean look
- Please use E-Z mount finder to verify compatibility of your flat panel screen and this mount
- TV size range 13″ – 40″
- Weight capacity 80lb (36kg)

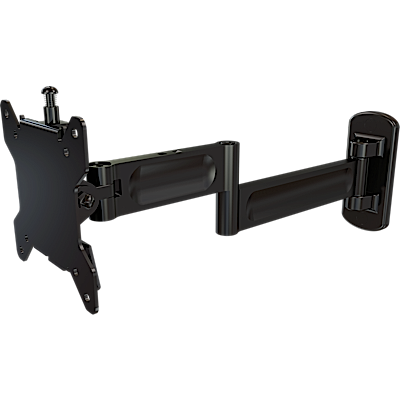

Crimson Articulating Wall Mount for 10″ to 30″ Screen
Model : A30F
Multiple joint arm holds screen 2″ from wall when retracted and 14.6″ when fully extended. Smooth tilt adjustments of +15° (forward) and -15° (back) facilitates a variety of viewing angles. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Integrated cable management for clean look.
Click here to download PDF spec sheet (360k)
Specifications
- VESA compatible 75x75mm, 100x100mm
- Pre-tensioned tilt mechanism for smooth tilt adjustment
- Pre-assembled securing screw makes installation fast and easy
- Integrated cable management for clean look
- TV size range 10″ – 30″
- Weight capacity 30lb (14kg)

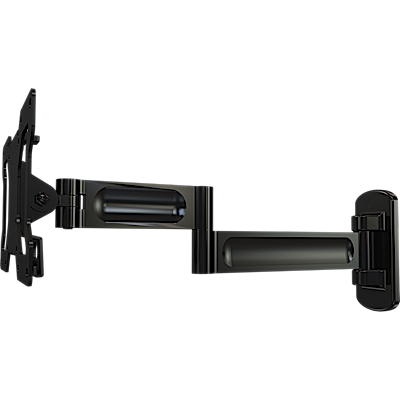

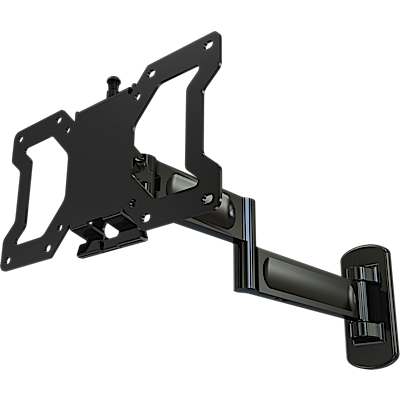

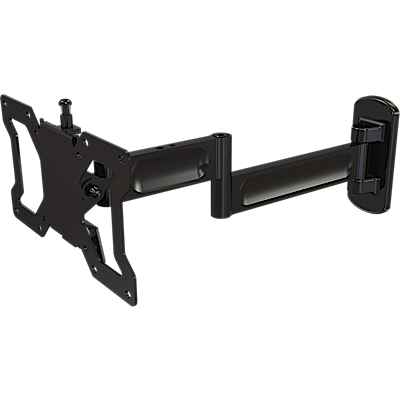

Crimson Articulating Wall Mount for 13″ to 32″ Screens
Model : A32F
Multiple joint arm holds screen 2″ from wall when retracted and 14.6″ when fully extended. Smooth tilt adjustments of +15° (forward) and -15° (back) facilitates a variety of viewing angles. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Integrated cable management for clean look.
Click here to download PDF spec sheet (360k)
Specifications
- VESA compatible 75x75mm, 100x100mm, 200x100mm
- Pre-tensioned tilt mechanism for smooth tilt adjustment
- Pre-assembled securing screw makes installation fast and easy
- Integrated cable management for clean look
- UL safety rating tested and approved
- TV size range 13″ – 32″
- Weight capacity 30lb (14kg)

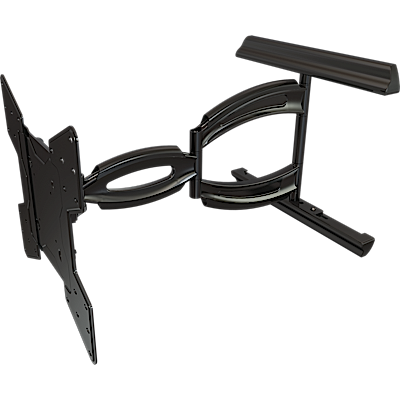

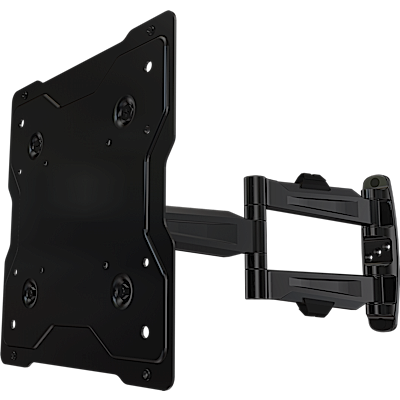

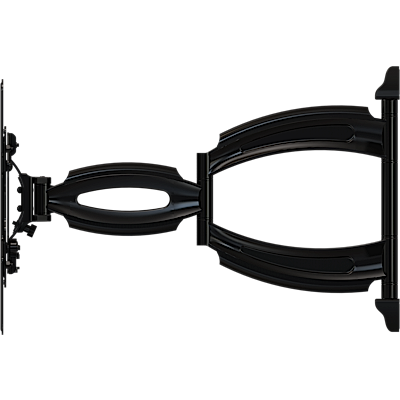

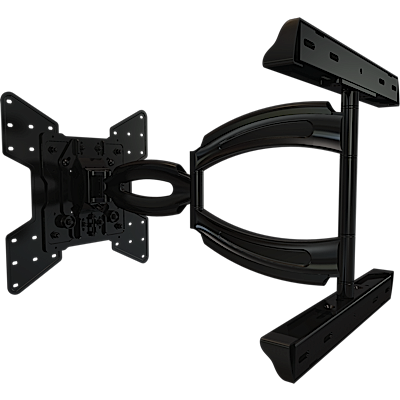

Crimson Articulating Wall Mount for 32″ to 70″ Screens
Model : A55V
Multiple joint arm holds screen 3.5″ from wall when retracted and 27″ when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) with a locking knob and 3° side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Integrated cable management for clean look.
Click here to download PDF spec sheet (376k)
Specifications
- VESA compatible
- Optional ADLP accessory rotates screen with ease from landscape to portrait or portrait to landscape orientation
- Pre-tensioned tilt mechanism for smooth adjustment
- Post installation screen leveling without use of tools
- Integrated cable management for clean look
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
- TV size range 32″ – 70″
- Weight capacity 150lb (68kg)
- Max mounting pattern 400x400mm
- VESA mounting patterns 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm

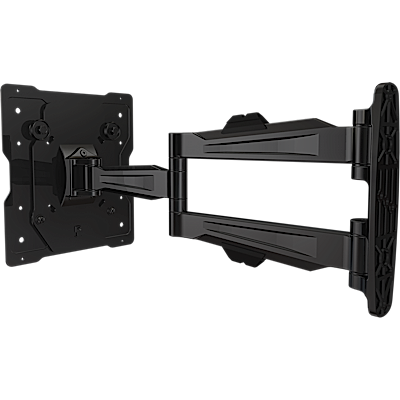

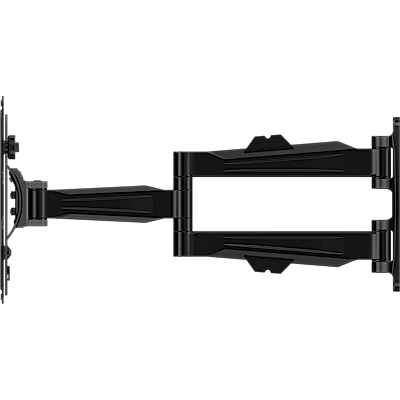

Crimson Articulating Wall Mount for 13″ to 49″ Screens
Model : A40
Multiple joint arm holds screen 2.5″ from wall when retracted and 21″ when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) with a locking knob and 3° side-to-side roll facilitates a variety of viewing angles and perfect screen positioning. Three attachment points for wood studs and four attachment points for concrete walls provide additional security. Integrated cable management for clean look.
Click here to download PDF spec sheet (404k)
Specifications
- OSHPD approved for seismic safety
- VESA compatible 100x100mm, 200x100mm, 200x200mm
- Optional AD400 extends compatibility up to 400x400mm
- Multiple attachment points for different mounting surfaces offers additional safety
- Smooth variable tilt from 15° forward to 5° back
- Integrated cable management for clean look
- UL Approved
- TV size range 13” – 49”
- Weight capacity 80lb (36kg)

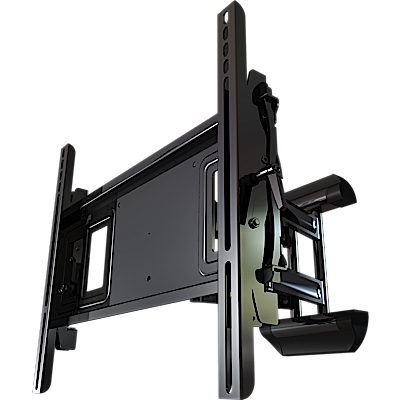

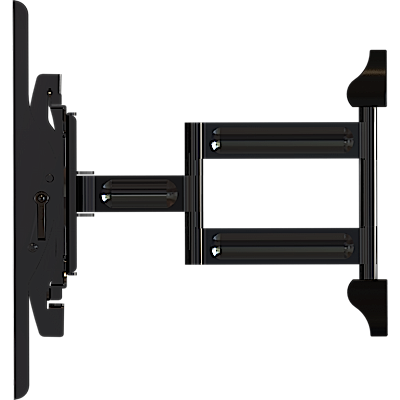

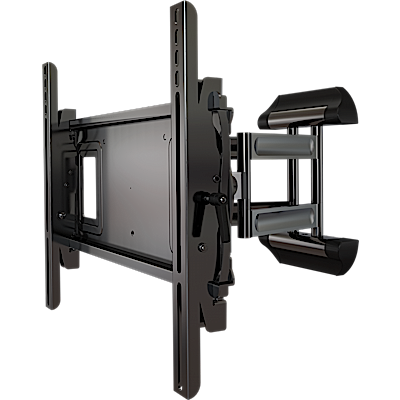

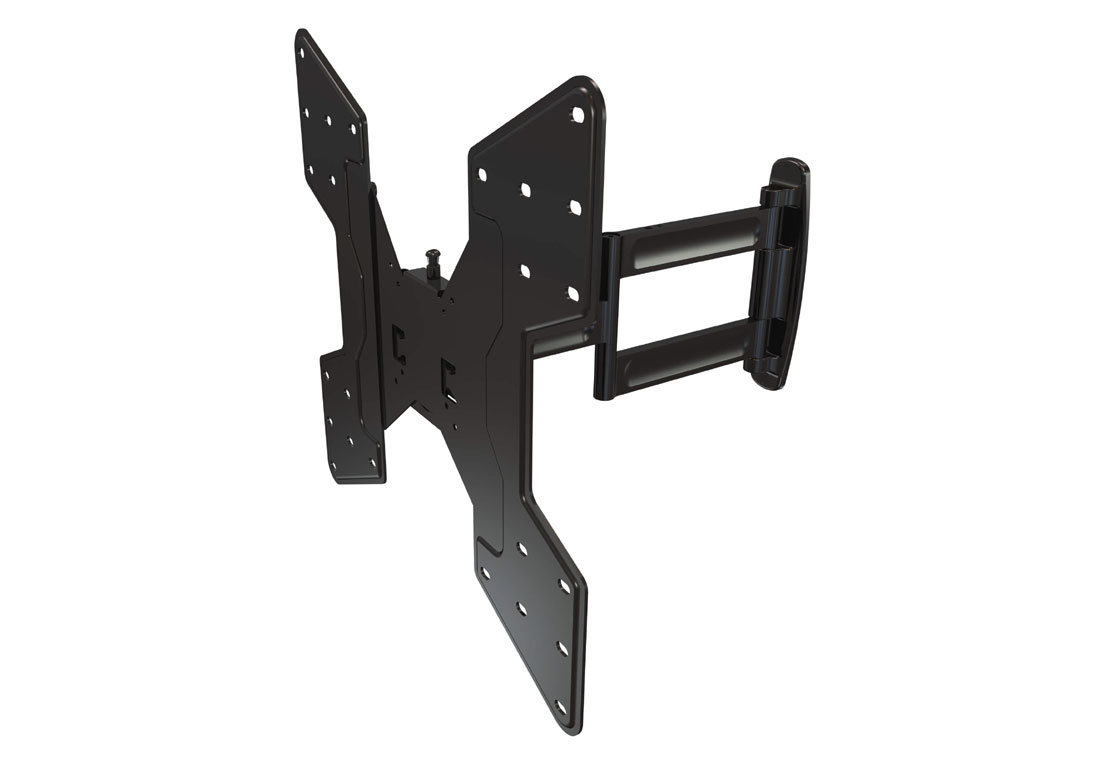

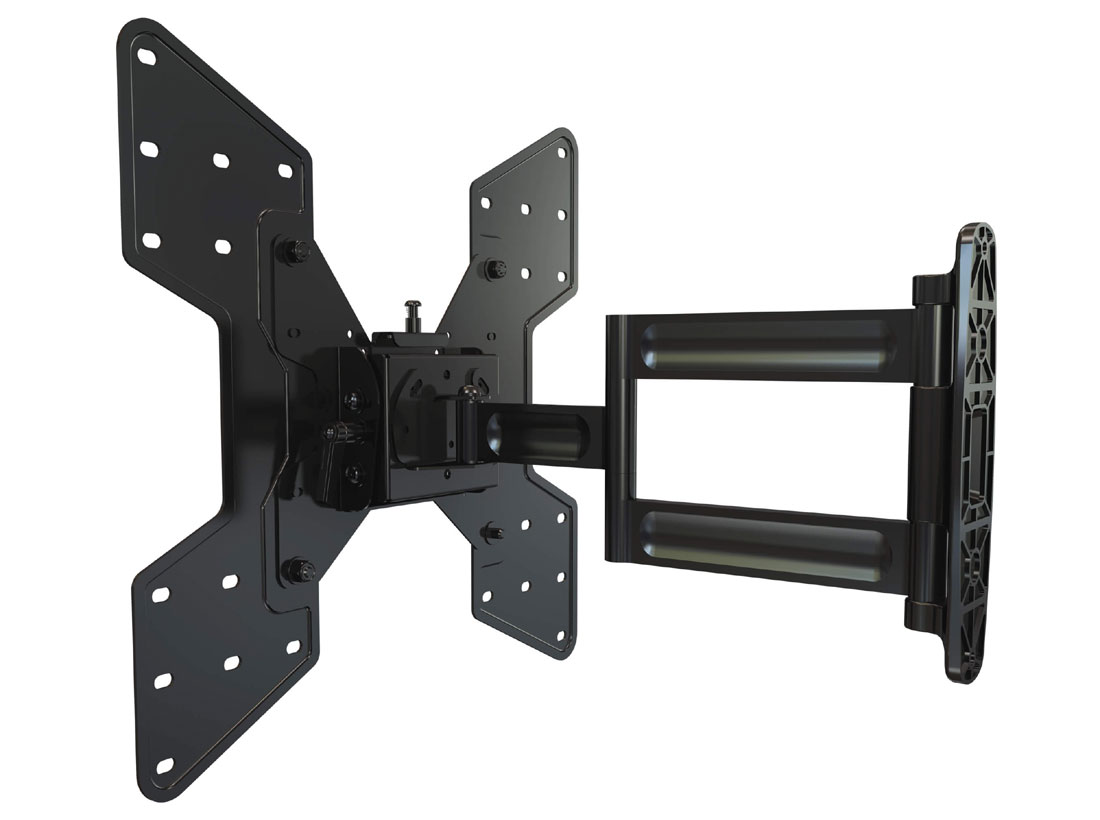

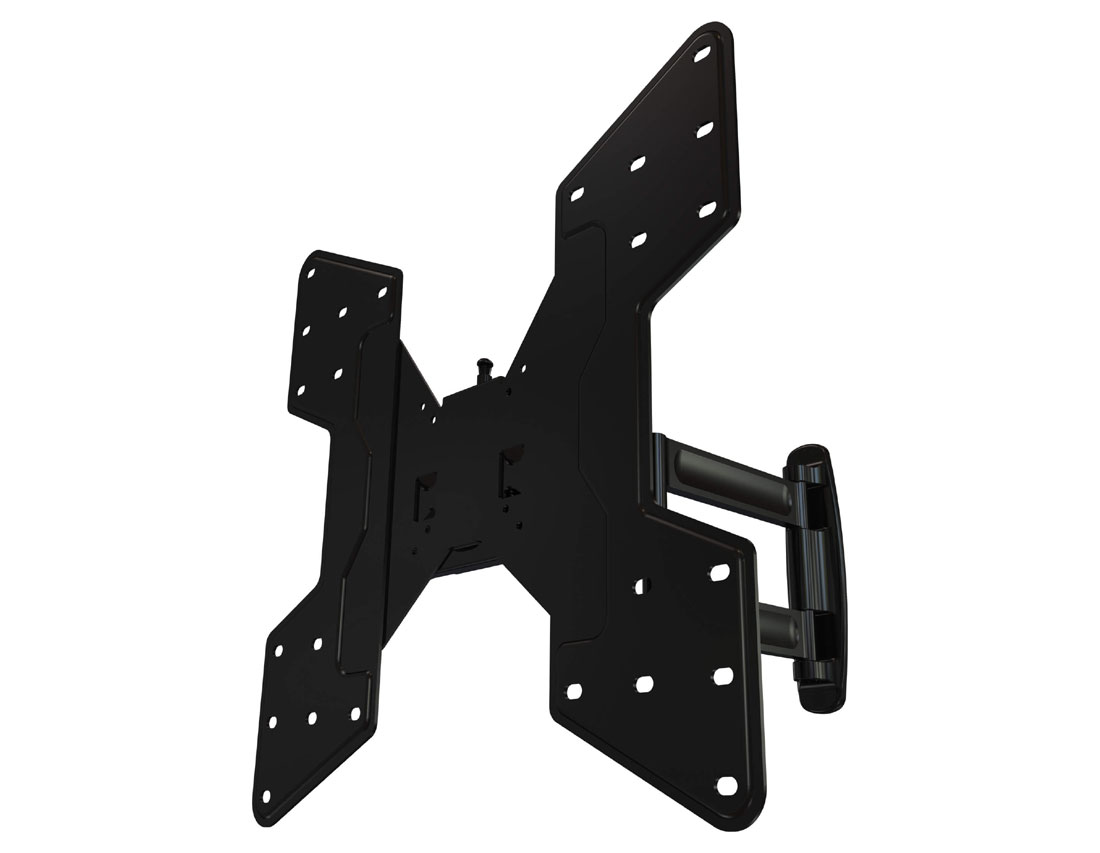

Crimson Articulating Wall Mount for 26″ to 55″ Screens
Model : A46F
Multiple joint arms hold screen 3.8″ from wall and extend up to 15.5″. Smooth tilt adjustments of 15° forward and 5° back with a locking knob for a variety of viewing angles. 3° side to side roll for perfect screen positioning. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screws to lock in place. Integrated cable management for clean look.
Click here to download PDF spec sheet (236k)
Specifications
- Universal design
- VESA compatible
- Lateral shift allows for perfect placement
- Pre-tensioned tilt mechanism for smooth adjustment
- Post installation screen leveling without use of tools
- Integrated cable management for clean look
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
- TV size range 26″ – 55″
- Weight capacity 100lb (45kg)
- Max mounting pattern 454x401mm
- VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm

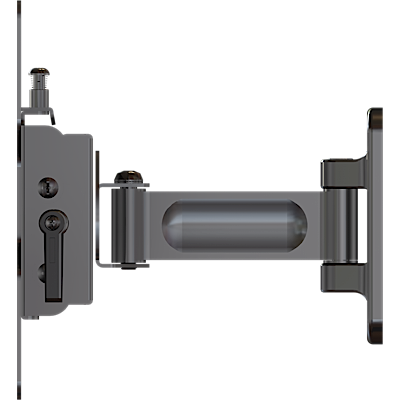

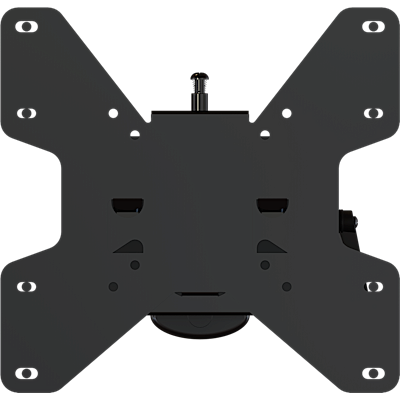

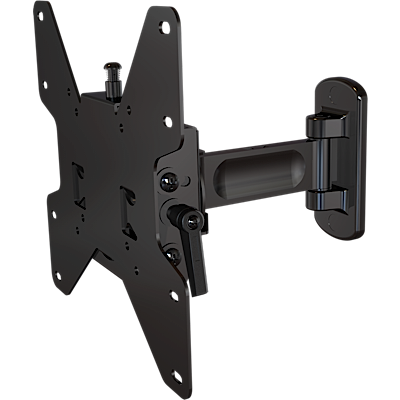

Crimson Pivoting Wall Mount for 13″ to 49″ Screens
Model : A37F
Swinging arm holds screen 2.8” from wall and extends up to 7.9”. Smooth tilt adjustments of 15° forward and 5° back with a locking knob for a variety of viewing angles. 5° side to side roll for perfect screen positioning. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Integrated cable management for clean look.
Click here to download PDF spec sheet (496k)
Specifications
- VESA compatible 75x75mm, 100x100mm, 200x100mm, 200x200mm
- Pre-assembled securing screw makes installation fast and easy
- Post installation screen leveling without use of tools
- Integrated cable management for clean look
- UL Approved
- TV size range 13” – 49”
- Weight capacity 80lb (36kg)

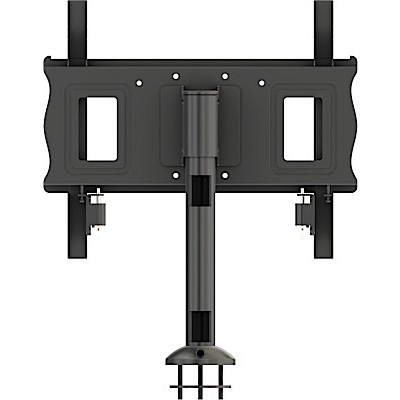

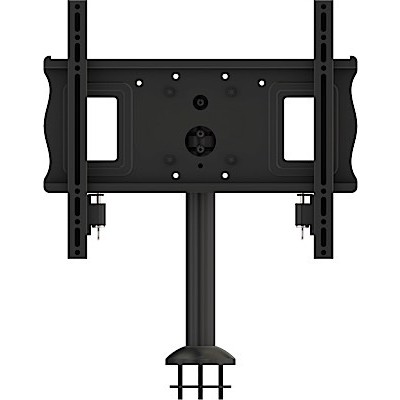

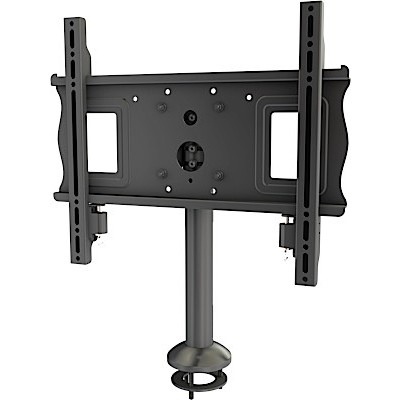

Crimson Bolt-Down Security Table Stand
Model : DS50HL
Integrated security at every connection point and proprietary one touch lock and key system makes this the most secure stand on the market. 30 degree or 45 degree swivel lock prevents over-rotation and possible collision with wall or furniture. Single monitor desktop stand with Universal screen adapter holds monitors weighing up to 150lb. Free standing base for perfect monitor placement.
Click here to download PDF spec sheet (1.0mb)
Specifications
- Integrated security at every connection point
- One touch proprietary lock and key system for added security
- 0-30 or 0-45 degree rotation option
- Through column cable management
- Universal design fit screens up to 454x400mm
- TV size range 32” – 55”
- Weight capacity 150lb (68kg)
- Max mounting pattern 454x400mm
- VESA mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm

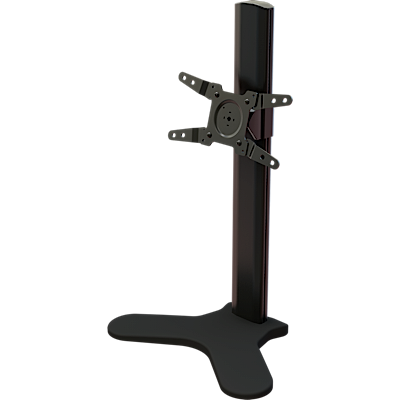

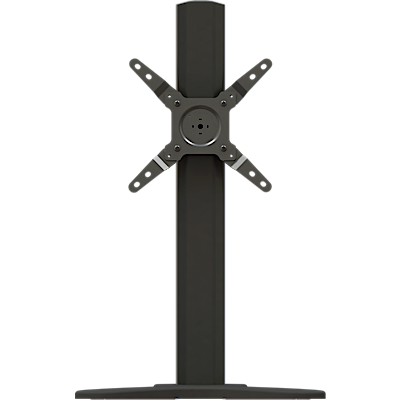

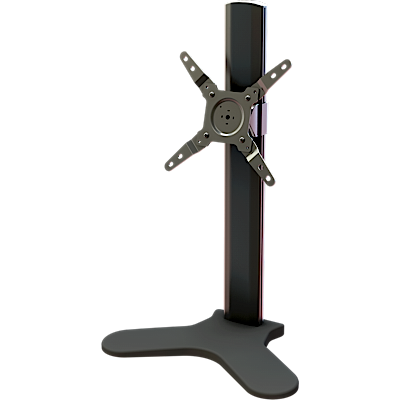

Crimson Single Desktop Stand for 13 to 34″ Screens
Model : DS134
Single monitor desktop stand with VESA screen adapter holds monitors weighting up to 30lb. Free standing base for perfect monitor placement. Monitor can be rotated from portrait to landscape orientation.
Click here to download PDF spec sheet (292k)
Specifications
- VESA compatible
- Fits a single screen up to 34″ in diagonal
- Finger tip tilt and screen leveling
- Portrait to landscape rotation
- Continuous vertical adjustment
- Monitor size range 13″ – 34″
- Weight capacity 30lb (14kg)

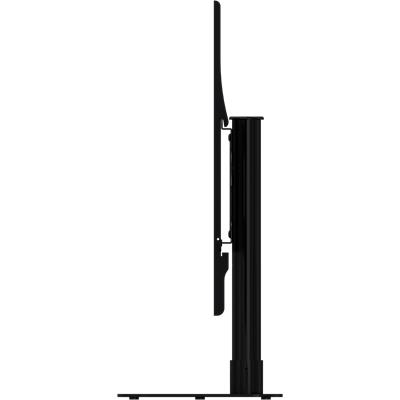

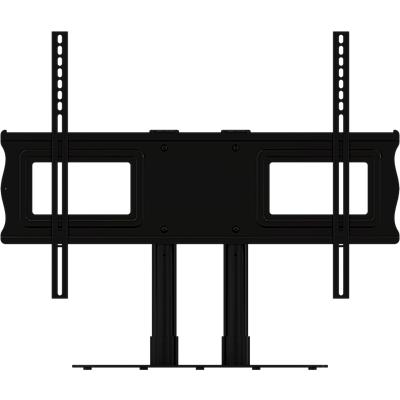

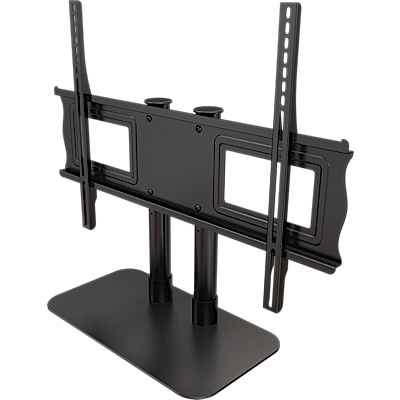

Crimson Single Desktop Stand for 32″ to 55″ Screens
Model : DS55
Single monitor desktop stand with Universal screen adapter holds monitors weighing up to 150lb. Free standing base for perfect monitor placement.
Click here to download PDF spec sheet (292k)
Specifications
- Universal design fit screens up to 723x501mm
- VESA compatible
- Lateral shift allows for perfect placement
- Pre-assembled securing screw locks screen in place
- TV size range 32″ – 55″
- Weight capacity 150lb (68kg)
- Max mounting pattern 723x501mm
- VESA mounting patterns 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 600x600mm
*Note: Distance from top mounting hole to bottom of screen must not exceed 25.3″ (642mm)

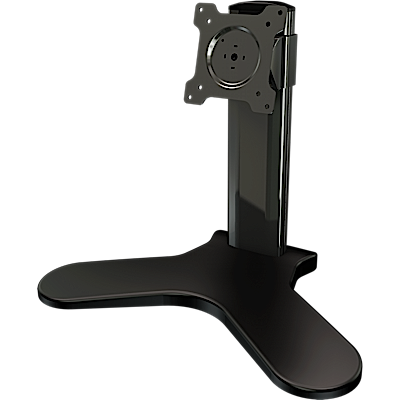

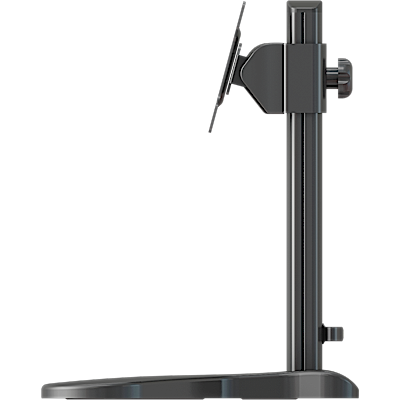

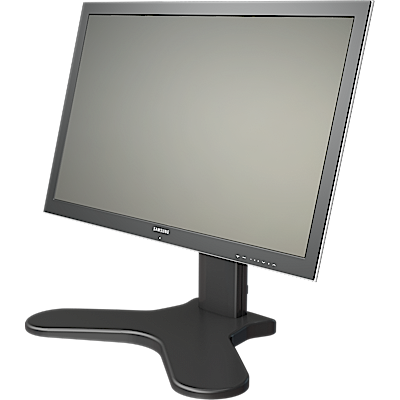

Crimson Single Monitor Desktop Stand
Model : DS1
Single monitor desktop stand with VESA screen adapter holds monitors weighting up to 30lb. Free standing base for perfect monitor placement. Monitor can be rotated from portrait to landscape orientation.
Click here to download PDF spec sheet (292k)t (292k)
Specifications
- VESA compatible 75x75mm, 100x100mm
- Finger tip tilt and screen leveling
- Portrait to landscape rotation adjustment
- Continuous vertical adjustment
- Please use E-Z mount finder to verify compatibility of your flat panel screen and this mount
- Monitor size range 10″ – 26″
- Weight capacity 30lb (14kg)
