Articulating & Pivot Wall Mounts

For the ultimate in functionality and aesthetics, the SmartMount® line of Articulating and Pivot Wall Mounts is unbeatable. The models in the line are compatible with both small (10″-22″) and mid-sized (22″-43″) and larger flat panels.

Choose from pivot models that have one extending arm or articulating models that incorporate two or even three extending arms for maximum adjustability. For optimum viewing, each model offers the ability to tilt and swivel the flat panel. Cord management is included on all of the articulating models to conceal A/V cables.

SP730P Pivot Arm Mount for 10″ – 22″ Screens VESA 75 / 100

The SP730P Pivot Arm Mount is being replaced by the PP730 Pivot Arm Mount.

Please see the PP730 model information below.

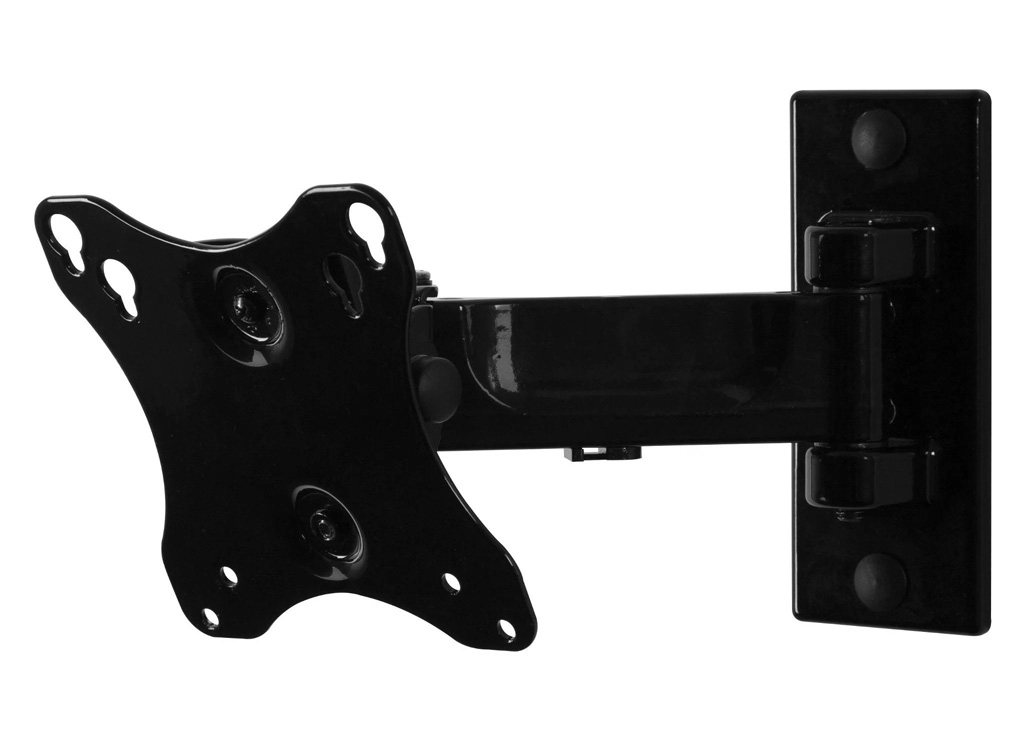

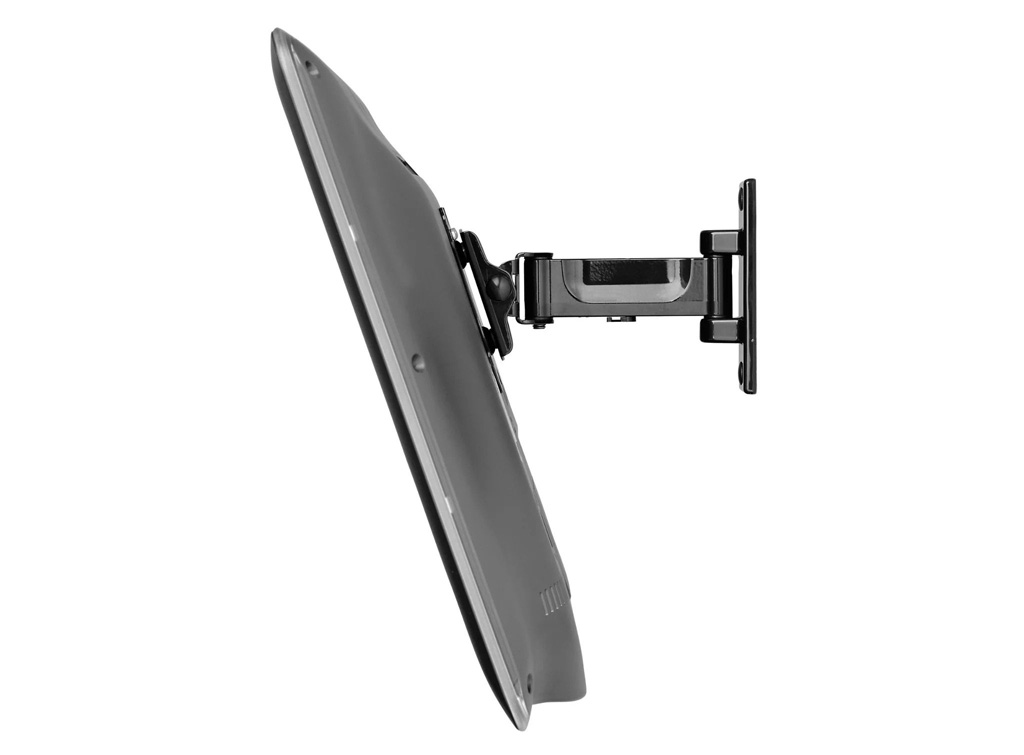

Model: PP730
Max Load: 25 lbs (11.34 kg)

PP730 Paramount™ Pivot Wall Mount for 10″ to 29″ Displays VESA 75 / 100

The Paramount™ series wall mounts provide versatile and multi-functional features. With PP730, extend the display up to 7.4″ (188mm) or fully-retract it to just 2.75″ (7mm) from the wall for an improved viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. One-Touch™ tilt technology offers ±15° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

Click here to download PDF Spec Sheet (168k)

Features

Mounts to wood stud, concrete, cinder or breeze block
For 10″ to 29″ displays
Extends 7.40” (188mm) from the wall
Accommodates 75 x 75 or 100 x 100mm VESA® mounting patterns
Retracts to 2.75” (70mm) to save space
One-Touch™ tilt mechanism offers ±15° of tilt angle adjustment – ±5° of roll for post installation display leveling
±90° of pivot
Design is UL listed and tested to four times stated load capacity
Max Load 25lb (11kg)

Components & Ordering: 1) To verify your screen is compatible, visit www.peerless-av.com and use the “Mount Finder” feature. 2) For metal stud installations contact TB&A to order accessory metal stud fasteners (ACC908).

Model: SA730P
Max Load: 25 lbs (11.34 kg)

Articulating Arm for 10″ – 22″ Screens VESA 75 / 100

Click here to download PDF Spec Sheet (168k)

Features

Mounts to single wood stud, concrete, cinder block or metal stud (with accessory metal stud fasteners)
Fits 10″ – 22″ LCD screens
Arms extends up to 15″ from the wall or folds flat to save space
Comes with VESA® 75/100 screen adapter plate
Color black
Smooth anodized aluminum finish
Three pivot points for extensive adjustment of viewing angle
Ball joint design at screen for easy side-to-side movement and +/-35° of tilt
Offers up to 180° of swivel
Built-in internal cord management channels keep wires out of the way
Includes hardware for installation to a single wood stud or concrete

SP740P Pivot Wall Arm for 22″ – 40″ Screens VESA 75/100/100X200/200X200

The SP740P Pivot Arm Mount is being replaced by the PP740 Pivot Arm Mount.

Please see the PP740 model information below.

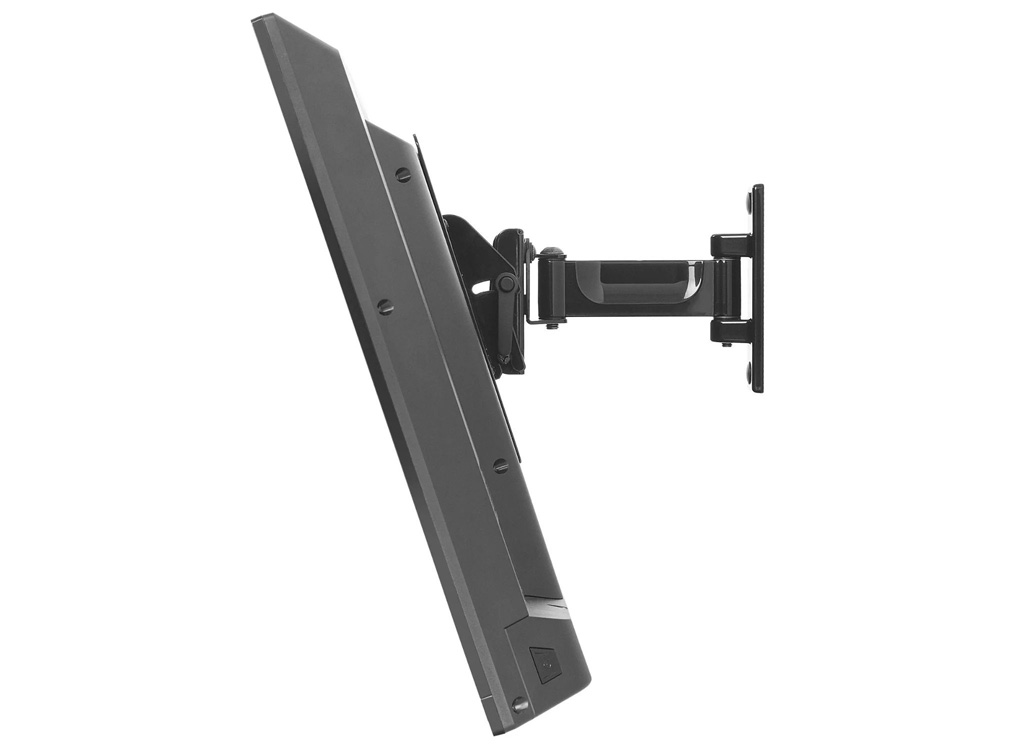

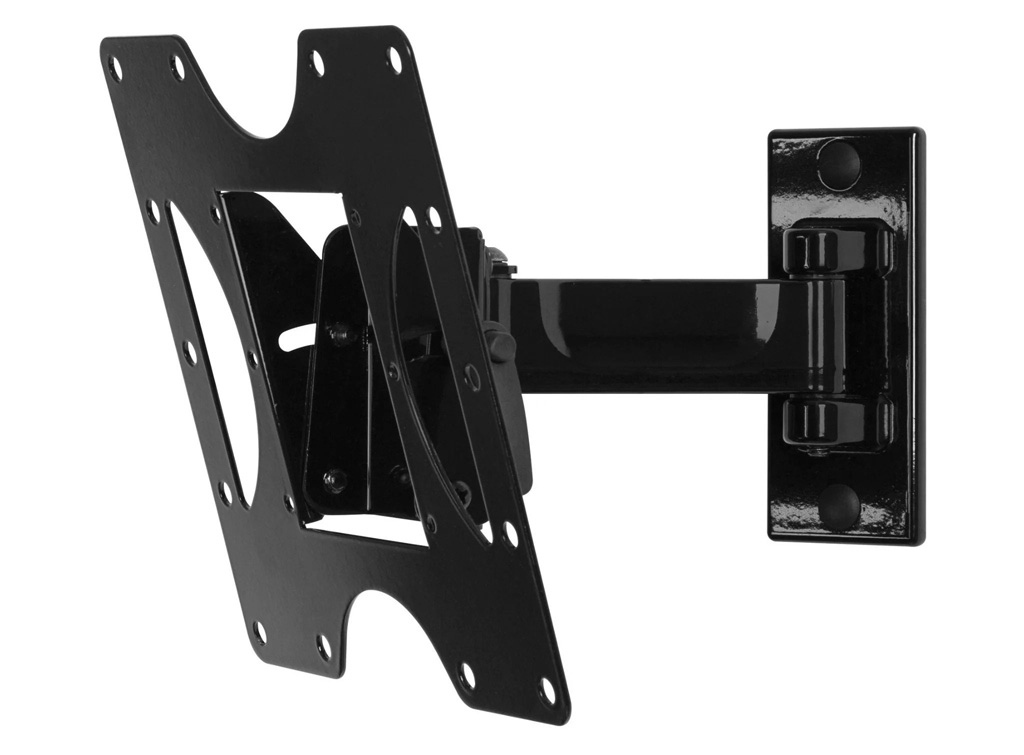

Model: PP740
Max Load: 80 lbs (36.29 kg)

PP740 Paramount™ Pivot Wall Mount for 22″ to 43″ Displays VESA 75/100/100X200/200X200

Click here to download PDF Spec Sheet (168k)

Features

Mounts to wood stud, concrete, cinder or breeze block
For 22″ to 43″ displays
Accommodates 100 x 100, 200 x 100, or 200 x 200mm VESA® mounting patterns
Extends 7.43″ (189mm) from the wall
Retracts to 2.78″ (70mm) to save space
+15/-5° of tilt for optimal viewing angles
±5° of roll for post installation display leveling
Up to ±90° of pivot
Design is UL listed and tested to four times stated load capacity
Max Load 80lb (36.29 kg)

Model: SA740P
Max Load: 80 lbs (36.29 kg)

Articulating Wall Arm For 22″ to 40″ LCD Screens

Click here to download PDF Spec Sheet (168k)

Features

Arm extends from wall up to 20″ or folds flat to save space
Three tensionable pivot points for extensive adjustment of viewing angle
Supports screens with VESA 100mm/200mm/200mm x200mm mounting hole patterns
Non-VESA screen adapter plates also available (sold separately)
One-touch,continuous tilt
Offers 7° of roll adjustment for easy screen leveling
Built-in internal cord management channels keep wires out of the way
Comes in black or silver
Includes hardware for installation to a single wood stud or concrete

Model: PA740
Max Load: 80 lbs (36.29 kg)

Paramount® Articulating Wall Mount For 22″ to 40″ Displays

Click here to download PDF Spec Sheet (420k)

The Paramount® series wall mounts provide versatile and multi-functional features. With PA740, extend the display up to 14.91″ (379mm) or fully-retract it to just 2.80″ (71mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

Features

Extends 14.91″ (379mm) from the wall
Retracts to 2.80″ (71mm) to save space
+15/-5° of tilt for optimal viewing angles
mounting hole patterns
±5° of roll for post installation display leveling
Up to ±90° of pivot
VESA Pattern 100 x 100, 200 x 100, 200 x 200
Weight Capacity 80lb (36.0kg)
Design is UL listed and tested to four times stated load capacity

Model: SP850-UNL
Max Load: 150 lbs

Pull-Out Swivel Mount for 26″ – 50″ Screens

Click here to download PDF Spec Sheet (168k)

The SmartMount® Pull-Out Swivel Wall Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850-UNL acts as a flat or tilting wall mount. At only 3.4″ away from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850’s sturdy arm construction smoothly glides the screen out 11.9″ from the wall and allows the screen to pivot up to 45 degrees. This feature not only enables the screen to be positioned for an optimal viewing angle, but it also provides easy access to the back of the screen for maintenance. The SP850-UNL is also ideal in applications where the screen needs to be recessed into a cubby hole, custom frame or aligned into a video wall. Mounts to 16″ wood studs, concrete or cinder block.

Model: SA752PU
Max Load: 150 lbs

Articulating Wall Arm for 37″ to 55″ Screens

Click here to download PDF Spec Sheet (168k)

The SmartMount® Articulating Wall Arm series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA752PU, extend the display up to 26.47″ (672mm) or fully-retract it to just 2.97″ (75mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

Model: SA761PU
Max Load: 150 lbs

Articulating Wall Arm for 39″ to 75″ Screens

Click here to download PDF Spec Sheet (168k)

The SmartMount® Articulating Wall Arm series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA761PU, extend the display up to 26.60″ (676mm) or fully-retract it to just 3.10″ (79mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

For more information on any hospital television products, please call 1-800-288-7351, or contact your TB&A Representative.

Note: GPOs and purchases on contract, please call us at 1-800-288-7351 for pricing and purchasing details.
